Series	Performance data			Dimensions and weights
Series	Pressure difference, mbar	Volume flow*, m³/h	Motor power, kw	Width (W), mm	Depth (D), mm	Height (H), mm	Weight, kg
SI 8 A/W** \| 8 bar	8,000	63	8	660	875	1,250	215
SI 8 A/W** \| 10 bar	10,000	52	8	660	875	1,250	215
SI 8 A/W** \| 13 bar	13,000	42	8	660	875	1,250	215
SI 11 A/W** \| 8 bar	8,000	89	11	660	875	1,250	220
SI 11 A/W** \| 10 bar	10,000	76	11	660	875	1,250	220
SI 11 A/W** \| 13 bar	13,000	67	11	660	875	1,250	220
SI 15 A/W** \| 8 bar	8,000	142	15	660	875	1,250	250
SI 15 A/W** \| 10 bar	10,000	116	15	660	875	1,250	250
SI 15 A/W** \| 13 bar	13,000	98	15	660	875	1,250	250
SI 19 A/W** \| 8 bar	8,000	175	19	770	850	1,450	300
SI 19 A/W** \| 10 bar	10,000	150	19	770	850	1,450	300
SI 19 A/W** \| 13 bar	13,000	117	19	770	850	1,450	300
SI 22 A/W** \| 8 bar	8,000	216	22	770	870	1,450	320
SI 22 A/W** \| 10 bar	10,000	183	22	770	870	1,450	320
SI 22 A/W** \| 13 bar	13,000	157	22	770	870	1,450	320
SI 30 A/W** \| 8 bar	8,000	281	30	850	980	1,750	470
SI 30 A/W** \| 10 bar	10,000	252	30	850	980	1,750	470
SI 30 A/W** \| 13 bar	13,000	220	30	850	980	1,750	470
SI 37 A/W** \| 8 bar	8,000	370	37	850	980	1,750	540
SI 37 A/W** \| 10 bar	10,000	320	37	850	980	1,750	540
SI 37 A/W** \| 13 bar	13,000	275	37	850	980	1,750	540
SI 45 A/W** \| 8 bar	8,000	443	45	950	1,180	1,750	660
SI 45 A/W** \| 10 bar	10,000	386	45	950	1,180	1,750	660
SI 45 A/W** \| 13 bar	13,000	332	45	950	1,180	1,750	660
SI 55 A/W** \| 8 bar	8,000	562	55	950	1,180	1,750	790
SI 55 A/W** \| 10 bar	10,000	505	55	950	1,180	1,750	790
SI 55 A/W** \| 13 bar	13,000	426	55	950	1,180	1,750	790
SI 75 A/W** \| 8 bar	8,000	726	75	1,330	2,300	1,670	1,600
SI 75 A/W** \| 10 bar	10,000	672	75	1,330	2,300	1,670	1,600
SI 75 A/W** \| 13 bar	13,000	548	75	1,330	2,300	1,670	1,600

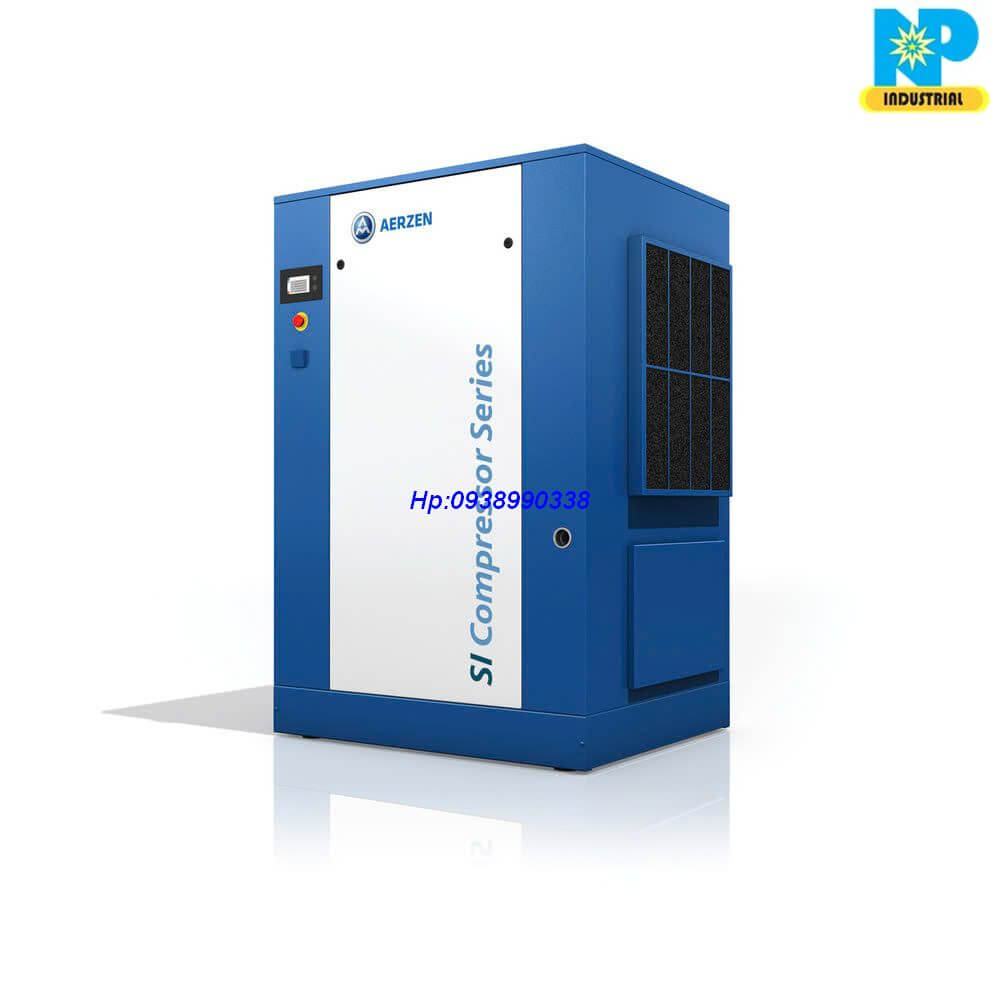

Máy nén trục vít một cấp phun dầu Series SI

Thông tin sản phẩm:
